产品名称：DP-96-4 A.C. voltmeter

Category Digital Voltmeters > DP-XX-4

Model DP-96 Single-phase AC Volmeter

Technical Data

Accuracy:      Voltage Accuracy class 0.5.

Parameters:  Rated voltage: AC 57.7V、AC 100V、AC 220V、AC 380V.

  Voltage overload: 1.2 times (Continuous)2times/1second.

  Internal resistance: Voltage≥1kΩ/V.

  Frequency: 45-65Hz.

Auxiliary Power supply: AC/DC 48-240V、AC/DC 80-265V、AC 380V、AC 220V、AC 110V、AC 60V.

Display Features:

                   High brightness LED display.

                   Display full range 1-9999 arbitrary variable settings.

                   Display “HHHH”,when  data over 1.4 times the full range.

Operating Environment:

                  Operating temperature:-10℃~+55℃.

                  Storage temperature:-25℃~+70℃.

                  Relative humidity:≤93%，Non corrosive gas sites.

Safety performance:

                  Insulation resistance:＞500MΩ.

                  AC Withstand Voltage:＞AC 2000V.

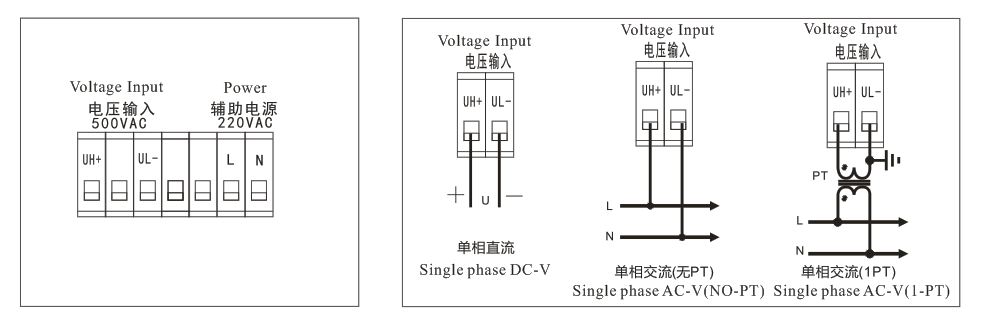

Signal Wiring Diagram:
