Technical Data

Accuracy:    Frequency±0.1%+2D.

Parameters:

Rated voltage: AC 57.7V、AC 100V、AC 220V、AC 380V.

Overload Rating: 1.2X rating (continuous) 2X rating for 1 seconds.

Internal resistance: ≥1kΩ/ V(for non-mA/mV inputs only).

Frequency:45~65Hz.

Auxiliary Power Supply:AC/DC 48~240V、AC/DC 80~265V、AC 380V、AC 220V、AC 110V、AC 60V.

Display Features: Highlight LED Display.

Operating Environment:

                 Operating temperature:-10℃~+55℃.

                 Storage temperature:-25℃~+70℃.

                 Relative humidity≤93%，Non corrosive gas.

Safety Performance:

                Insulation resistance: ＞100MΩ.

                AC withstand voltage: ＞AC 2000V.

EMC:

               ESD: Level  4

               Surge: Level  4

               RF: Level  3

               EFT: Level  3

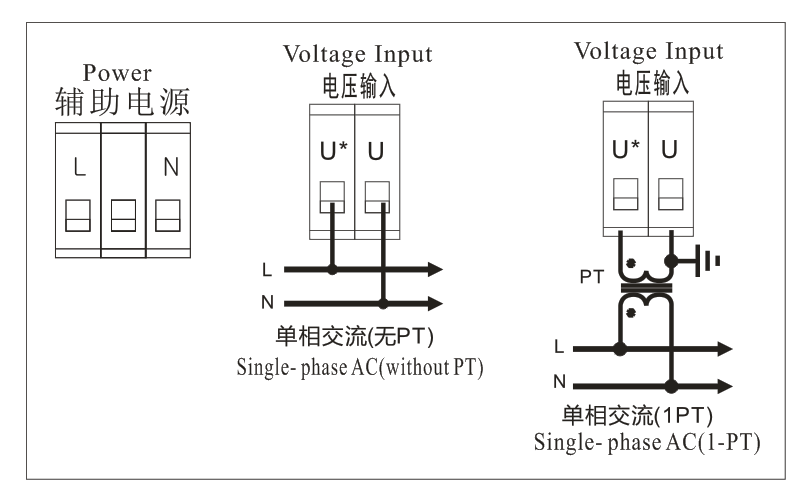

Signal Wiring Diagram:
